Setting up the Pipeline Descriptor file: .gitlab-ci.yml

Everytime changes are pushed to Gitlab, Gitlab looks for the file .gitlab-ci.yml at the root of your repository file tree.

The .gitlab-ci.yml describes all stages of your pipeline and the jobs for each stage. Pipeline Jobs are fully encapsulated scripts that do one specific thing: Build stuff, static code analysis, run tests on a testsuite, push images and so on. Pipeline Stages group Pipeline Jobs and specify when to execute job group.

At runtime, Gitlab uses available Pipeline Runners to execute the Pipeline Job of each Pipeline Stage in parallel. Don't worry: You can use the freely available Pipeline Runners hosted directly by Gitlab or you can provide Pipeline Runners that run in your local server rack.

Now, let's take a look at our .gitlab-ci.yml file:

variables:

stages:
  - build

build-stm32-project:
  needs: []
  stage: build
  image: ${CI_REGISTRY}/julian_honeysuckle/stm32cubeidepipelinedemo/stm32cubeide-ci:1.16.1
  script:
    - build_project.sh -p STM32Project/STM32CubeIDEPipelineBlogPost.ioc -t Debug
    - ls STM32Project/Debug/STM32CubeIDEPipelineBlogPost.elf
  artifacts:
    when: on_success
    paths:
      - STM32Project/Debug/STM32CubeIDEPipelineBlogPost.elf

The file has one stage, the "build" stage, and in this stage there is only one job "build-stm32-project".

The "script" field indicates what commands are executed in this job. First, the job executes a script that builds the project in STM32CubeIDE and second, verifies the build by checking if the firmware binary is present.

But how do we upload our build system, in this case the STM32CubeIDE's build system, so that the gitlab runners in the cloud or in our server rack have access to it?

Docker Container and Docker Images: Providing Gitlab with an environment containing our build system

Docker is a service that allows storing and executing Linux environment snapshots. Docker Images are files that store the Linux environment. At runtime, the Docker Image is loaded and executed inside a Docker Container.

So, to run STM32CubeIDE in the Gitlab Runners, we need to create and upload a Docker Image with STM32CubeIDE installed. Docker Images are created with Dockerfiles. For this tutorial, you should think of Dockerfiles as recipes that describe sets up our environment step-by-step.

Here is the Dockerfile of the Docker Image that runs in our Demo:

FROM --platform=amd64 ubuntu:24.10
ENV LICENSE_ALREADY_ACCEPTED=1

RUN apt-get -y update && apt-get -y install zip

ARG INSTALLER_ZIP

COPY ${INSTALLER_ZIP} /tmp/stm32cubeide.sh.zip

# extract cubeide installer script and remove download file
RUN unzip -p /tmp/stm32cubeide.sh.zip > /tmp/installer.sh && rm /tmp/stm32cubeide.sh.zip

# Flag the script as executable, execute the script and remove the download file
RUN chmod +x /tmp/installer.sh && \
    printf '/opt/stm\nn\n' | /tmp/installer.sh && \
    find /opt/stm -name "*.zip" -type f -delete && \
    rm -r /tmp/installer.sh

COPY build_project.sh /opt/stm

ENV PATH="${PATH}:/opt/stm"

RUN chmod +x /opt/stm/build_project.sh

Now, let's go through this Dockerfile step by step:

Line 1: FROM --platform=amd64 ubuntu:24.10 -› The first line states that our Docker Image should be based on the publicly available Ubuntu 24.10 Docker Image.

Line 8: COPY ${INSTALLER_ZIP} /tmp/stm32cubeide.sh.zip -› The Dockerfile copies an installer archive in the environment, extracts it (line 11) and executes the installer script (RUN command starting in line 14).

Line 17: rm -r /tmp/installer.sh -› Now that the IDE is installed, let's remove the install script to free up disk space in the final image.

Now, when we use docker build to build our image, we will have an Image that contains only the IDE without the installer, which will safe us some disk space.

At the end, the Dockerfile copies the build_project.sh script into the environment, which is a script that invokes a headless build using the IDE's build sysstem. For each different build system or IDE, it is a good idea to have such a file. You can find the script here: https://gitlab.com/julian_honeysuckle/stm32cubeidepipelinedemo/-/blob/master/PipelineFiles/ContainerFiles/build_project.sh?ref_type=heads

It is good practice to have a script that builds your container image instead of calling docker build. We won't go into detail, but you can find the build script here: https://gitlab.com/julian_honeysuckle/stm32cubeidepipelinedemo/-/blob/master/PipelineFiles/build_container.sh?ref_type=heads

All the script does is parse command line parameters and create the right docker build command.

# Build the Docker image
echo "Building Docker image $GITLAB_REGISTRY/$PROJECT_NAMESPACE/$IMAGE_NAME:$VERSION from Dockerfile: $DOCKERFILE..."
docker build -t "$GITLAB_REGISTRY/$PROJECT_NAMESPACE/$IMAGE_NAME:$VERSION" -f "$DOCKERFILE" --build-arg INSTALLER_ZIP="$INSTALLER_ZIP" "$CONTAINER_ROOT_DIR"

# Check if the build was successful
if [ $? -eq 0 ]; then
  echo "Docker image $GITLAB_REGISTRY/$PROJECT_NAMESPACE/$IMAGE_NAME:$VERSION built successfully."
else
  echo "Docker image build failed."
  exit 1
fi

When executed, the script builds the Docker Image. This takes several minutes as it extracts the IDE installer scripts and executes it. Now, we have the Docker Image containing the STM32CubeIDE on our local machine.

To push our local image into our Gitlab Project's Container Registry, we provide the push_container.sh script.

The docker image is pushed into our Container Registry using the docker push command.

For more details, take a look at the script here: https://gitlab.com/julian_honeysuckle/stm32cubeidepipelinedemo/-/blob/master/PipelineFiles/push_container.sh?ref_type=heads

This script requires you to login with your gitlab credentials, see the additional resources below.

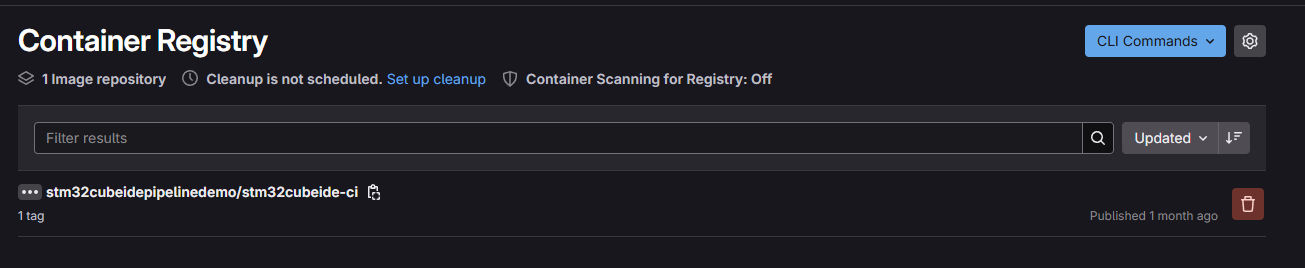

This is how the pushed Docker Image looks like in our Gitlab Container Registry:

Now, our Gitlab has a Docker Image with the STM32CubeIDE to build our project in the pipeline!

Utilizing the Pipeline: Block Merge Requests that break the Pipeline

From now on everytime we push changes now, the pipeline triggers and compiles our project. To utilize the pipeline, it is a good practice to setup gitlab so that Merge Requests are blocked until all Pipelines succeeded.

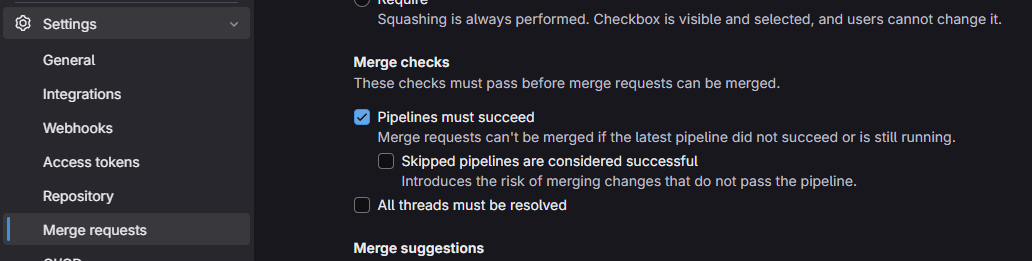

To do so, navigate to Settings → Merge Requests in your Gitlab Project and go to the section "Merge checks" and tick the box Pipelines must succeed. Now, we block branches that do not compile from merging into our development branch.

To showcase this, we added two Merge Requests to our Gitlab Demo.

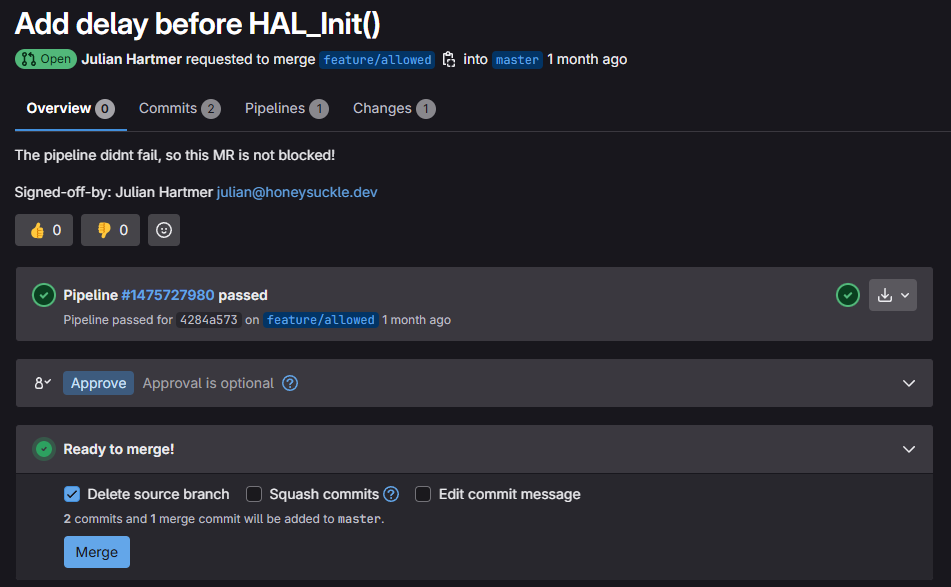

One merge request compiles so the pipeline succeeds: https://gitlab.com/julian_honeysuckle/stm32cubeidepipelinedemo/-/merge_requests/3

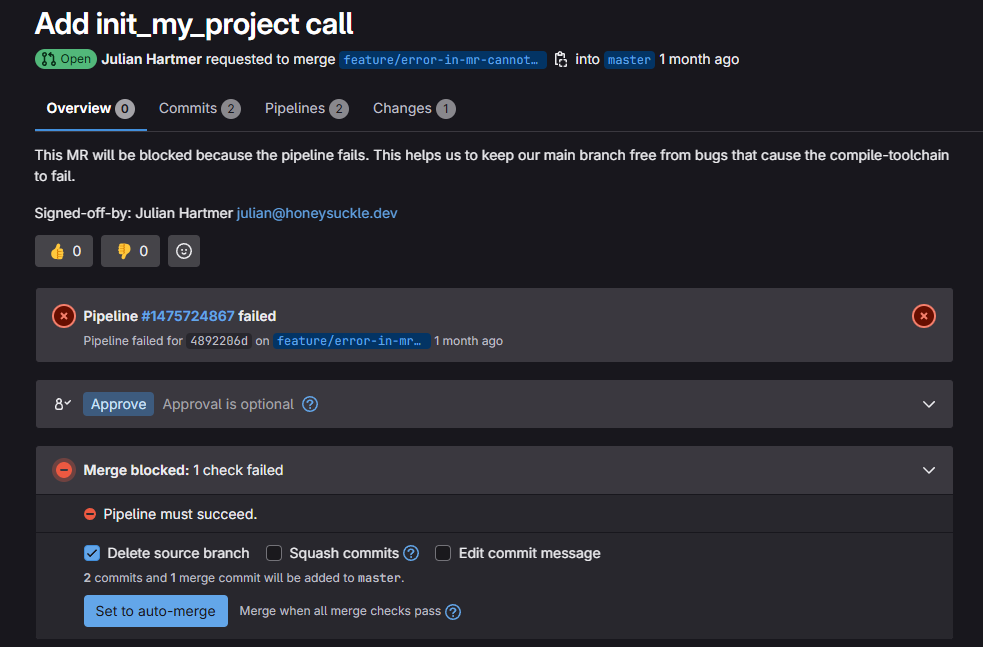

The other merge request contains errors and the pipeline fails: https://gitlab.com/julian_honeysuckle/stm32cubeidepipelinedemo/-/merge_requests/1

Investigating why the pipeline fails

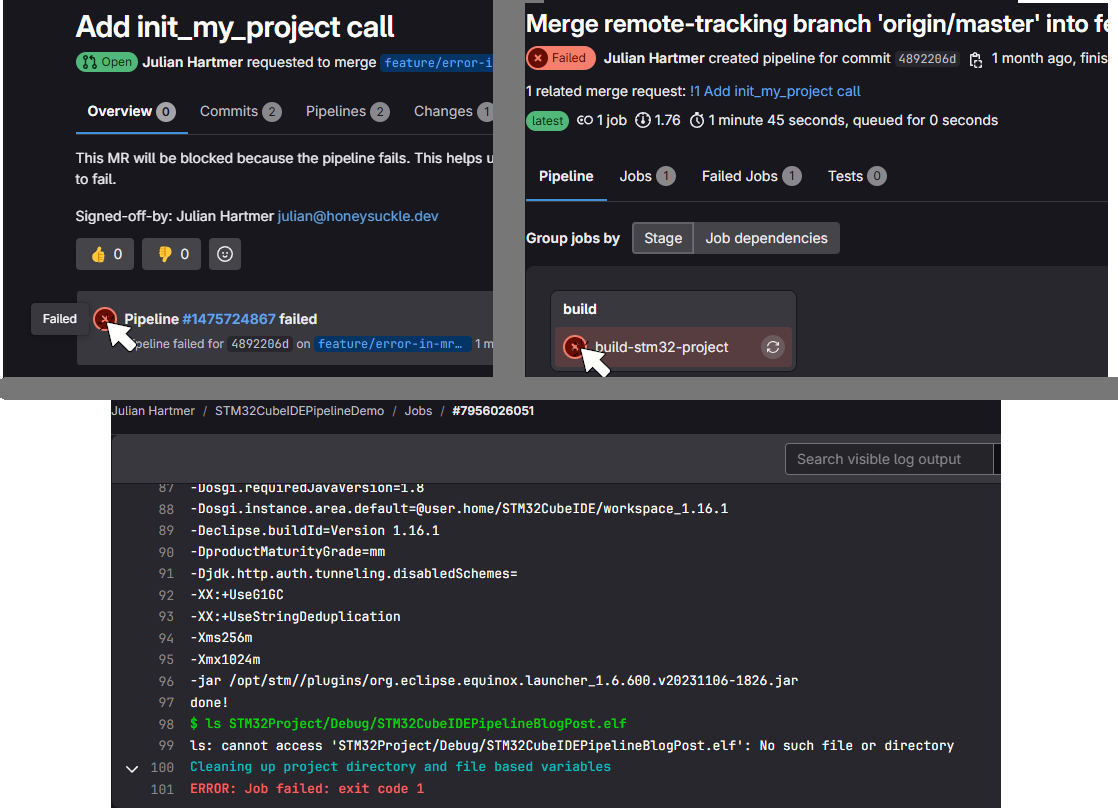

Let's investigate why the pipeline failed: Click on the red cross icon that indicates pipeline failure. This will take us to a page with an overview of all pipeline stages and each pipeline job. Now click on the build job. This will take us to a page with the logs of the build job.

../Core/Src/main.c:77:20: error: expected ';' before 'SystemClock_Config'
   77 |   init_my_project()
      |                    ^
      |                    ;
......
   82 |   SystemClock_Config();

There is a syntax error, the ; is missing! Now we found one error that causes the pipeline to fail. If this was a real project, you would now fix the syntax error, check your local build and push if your local build succeeds.

Downloading the firmware from the Pipeline Build Job

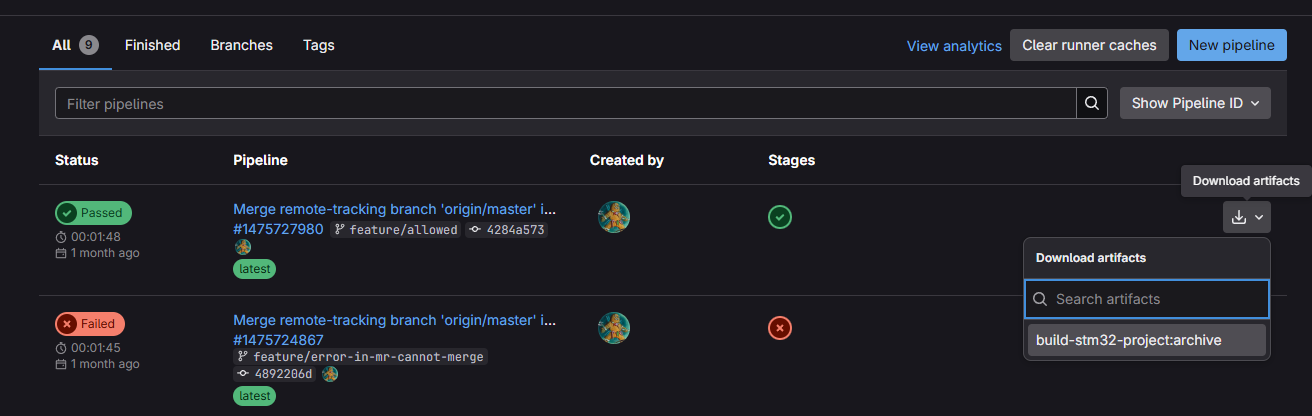

Let's take a look at the other Merge Request's Pipeline again. When you navigate to the Job's logs, you can download the firmware binary with the download button on the right side: https://gitlab.com/julian_honeysuckle/stm32cubeidepipelinedemo/-/jobs/7956052399

The .gitlab-ci.yml describes which files are to be uploaded to the Gitlab download server, see here: https://gitlab.com/julian_honeysuckle/stm32cubeidepipelinedemo/-/blame/master/.gitlab-ci.yml?ref_type=heads#L13

It is good practice to only deploy firmware that is build from pipelines. This way, we prevent deploying firmware that was built in an incorrect environment. Our Pipeline is the single source of truth and only builds originating from our Pipeline are verifiably build in the correct environment!

Conclusion & Outlook

Now we have setup a Pipeline that builds our STM32CubeIDE project automatically on changes and checks that block Merge Request from merging branches that do not compile!

From here on out, feel free add additional Pipeline jobs. Now it is time to brainstorm: How can we use Pipeline Automation to improve our team's productivity? Maybe we should add a job that checks our code format or a job for static code analysis.

If you need help in setting up your Pipeline or if you need help in desiging Pipelines for complicated projects with multiple MCUs, please contact us here: https://honeysuckle.dev/contact.html

Additional Resources

• Gitlab CI/CD: https://docs.gitlab.com/ee/ci/index.html
• .gitlab-ci.yml File Specification: https://docs.gitlab.com/ee/ci/yaml/index.html#stages
• Gitlab Container registry: https://docs.gitlab.com/ee/user/packages/container_registry/
• Docker documentation: https://docs.docker.com/
• STM32CubeIDE: https://www.st.com/en/development-tools/stm32cubeide.html
